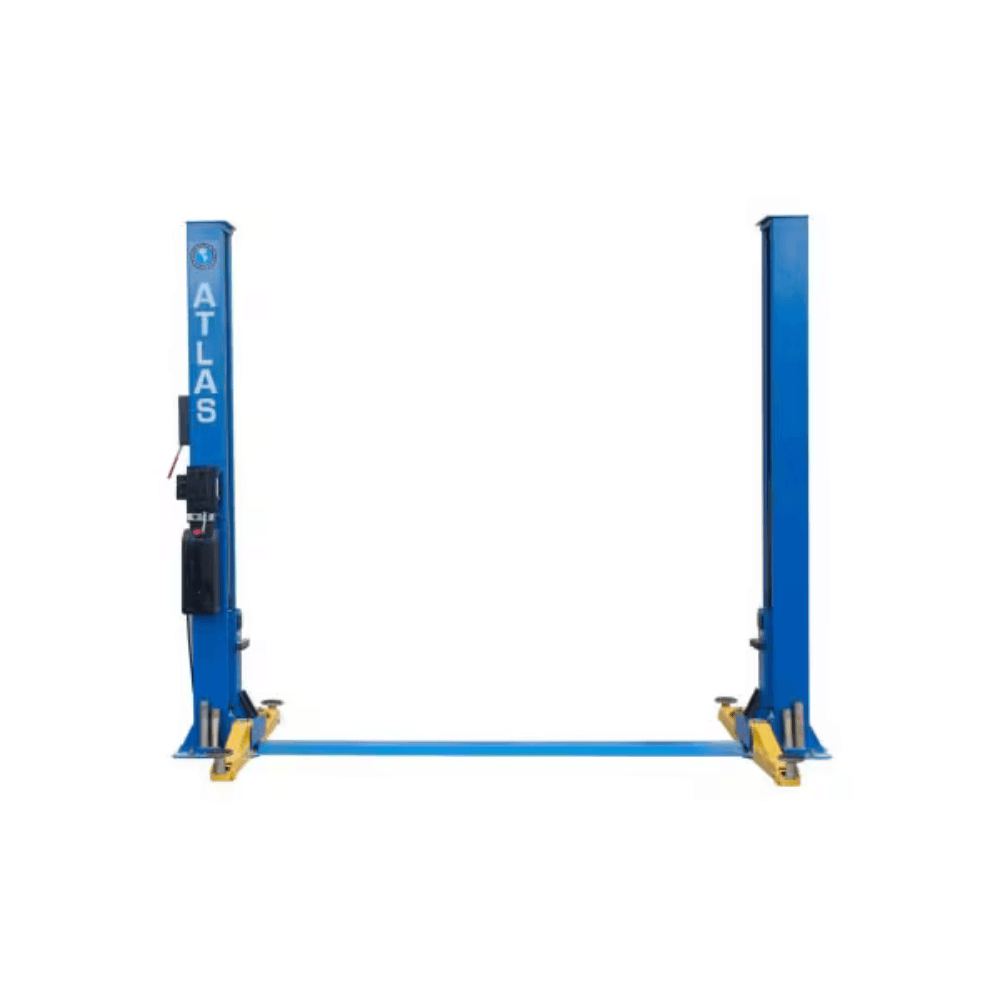

Atlas 8000 Lb Capacity Baseplate 2-Post Lift
$1,289.90
- 8,000 lb. Lifting Capacity
- Designed for Low-Ceiling Garages
- Baseplate, Open-Top Style Lift
- Super-Symmetric Arm Design
- Easy 90-day returnsSimple, no-stress process
- Manufacturer warrantyOn every product
- Secure paymentSSL encrypted checkout
- Expert supportHelp choosing the right model
Guaranteed safe & secure checkout
Product overview
Warranty: 5-Year Structural, 2-Year Hydraulic (Parts Only).
The Atlas BP8000 is one of the best two-post lifts for garages with height restrictions, offering a powerful yet compact lifting solution. Its Super-Symmetric arm design, strong hydraulic chain-drive system, and premium safety features make it an ideal choice for vehicle maintenance and repairs in both home garages and small workshops.
Key features
- 8,000 lb. Lifting Capacity – Suitable for cars, SUVs, and light trucks.
- Designed for Low-Ceiling Garages – Total height of 108″ (9 feet) allows installation in spaces with ceilings as low as 9′ 3″.
- Baseplate, Open-Top Style Lift – Provides structural stability without an overhead beam.
- Super-Symmetric Arm Design – 2-Stage Front Arms & 3-Stage Rear Arms for enhanced flexibility. Allows vehicles to be lifted in both symmetric and asymmetric positions.
- Automatic Arm Restraints – Ensures secure positioning during lifting.
- Single-Point Lock Release – Allows simultaneous unlocking of both columns for added convenience. Enhances safety and ease of operation.
- Double Safety Lock System – Provides an extra layer of security.
- Dual Hydraulic Chain-Drive Cylinders – Ensures smooth and reliable lifting performance.
- Free 12-Piece Truck Adapter Set – Expands compatibility for a wider range of vehicles.
- Mounting Hardware Included – For easy and secure installation.
- If you’re looking for a reliable, low-ceiling-friendly, and feature-packed two-post lift, the Atlas BP8000 is the perfect choice!
Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 8,000 lbs. |
| Overall Height | 108″ (9′) |

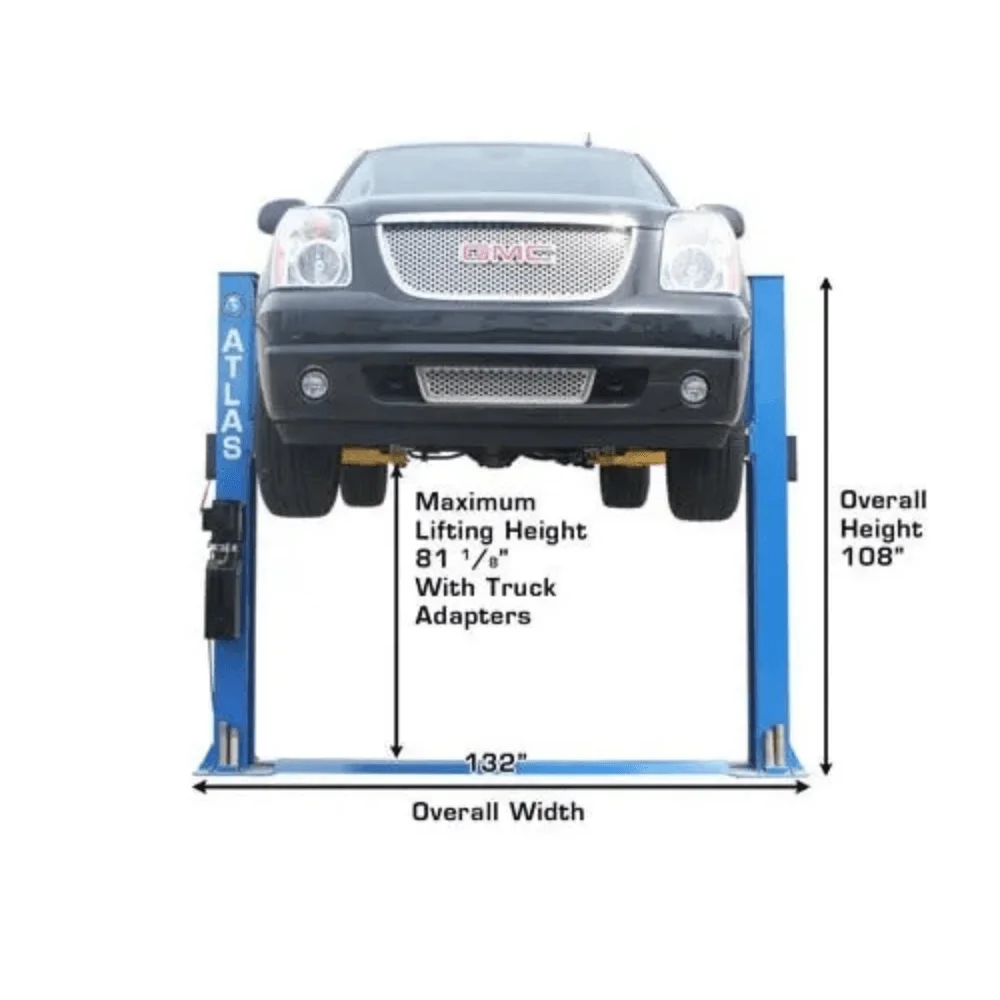

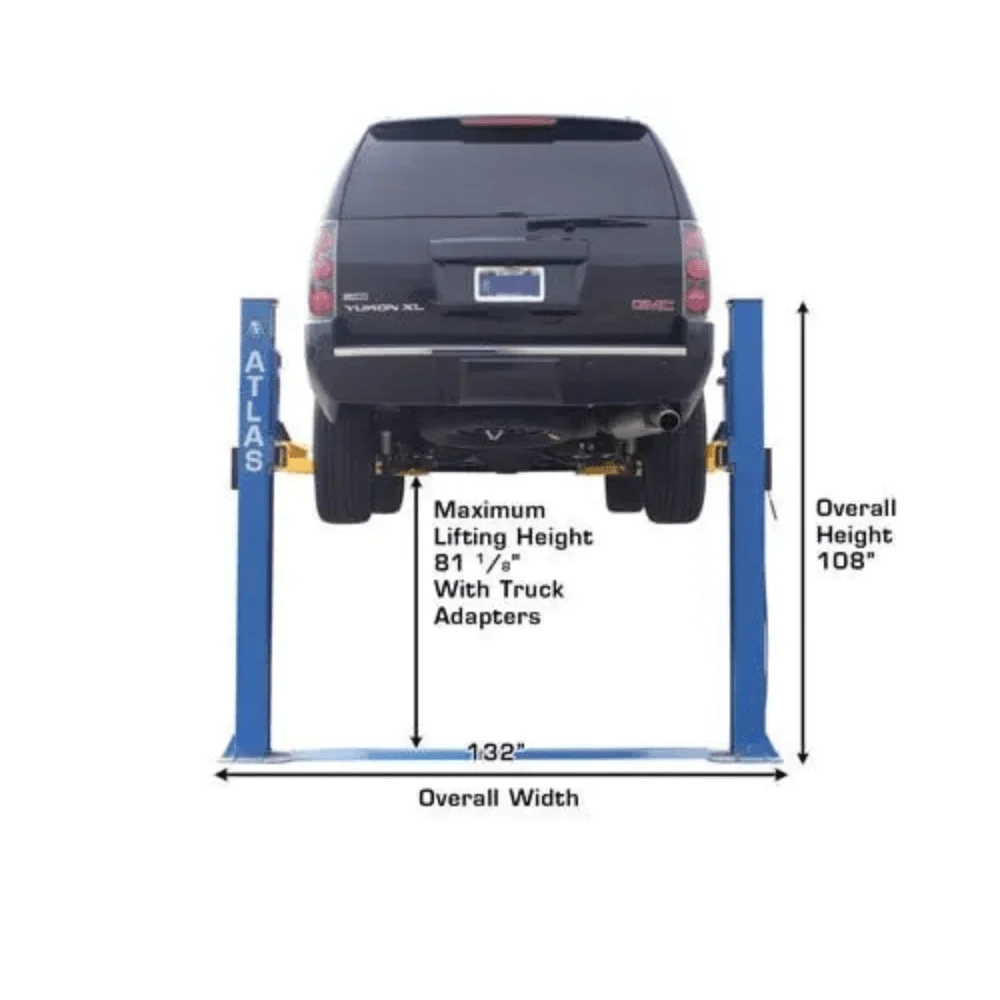

| Overall Floor Width | 132″ (11′) |

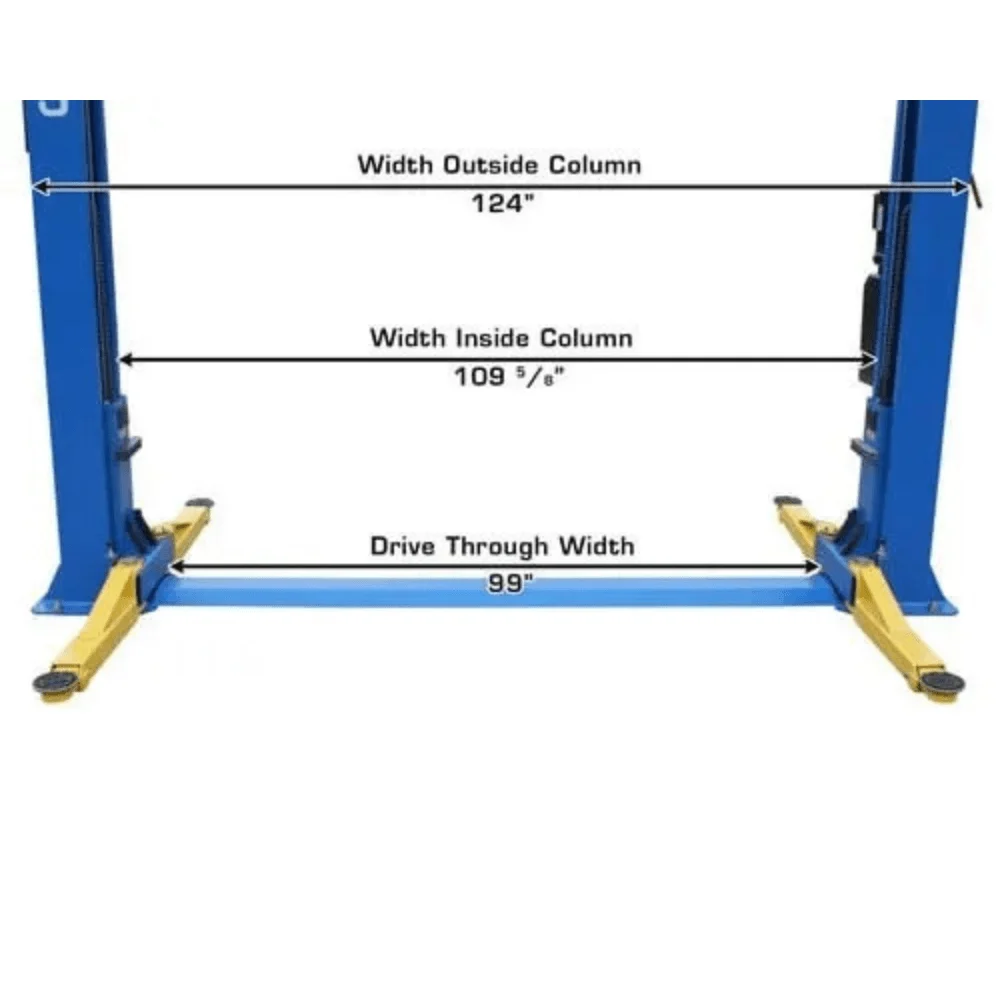

| Outside Column to Outside Column | 124″ (10′ 4″) |

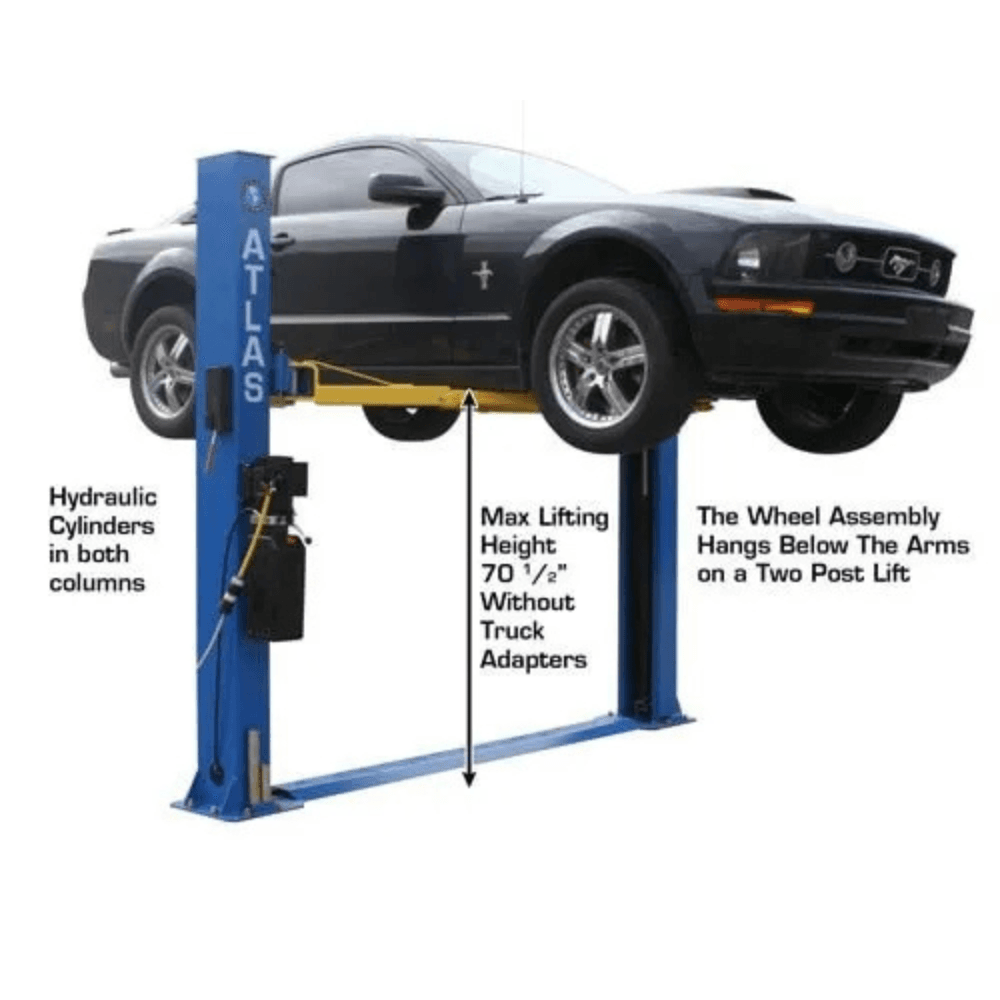

| Maximum Lift Height (Without Adapters) | 75 1/2″ |
| Maximum Lift Height (With Adapters) | 86 1/2″ |
| Minimum Arm Height | 4″ |
| Inside Column Width | 109 1/8″ (9′ 1 1/8″) |
| Drive-Thru Clearance | 99″ (8′ 3″) |
| Column Size | 7 1/4″ x 11″ |
| Column Thickness of Steel | 6mm |
| Base of Lift | 17 1/2″ x 17 3/4″ |

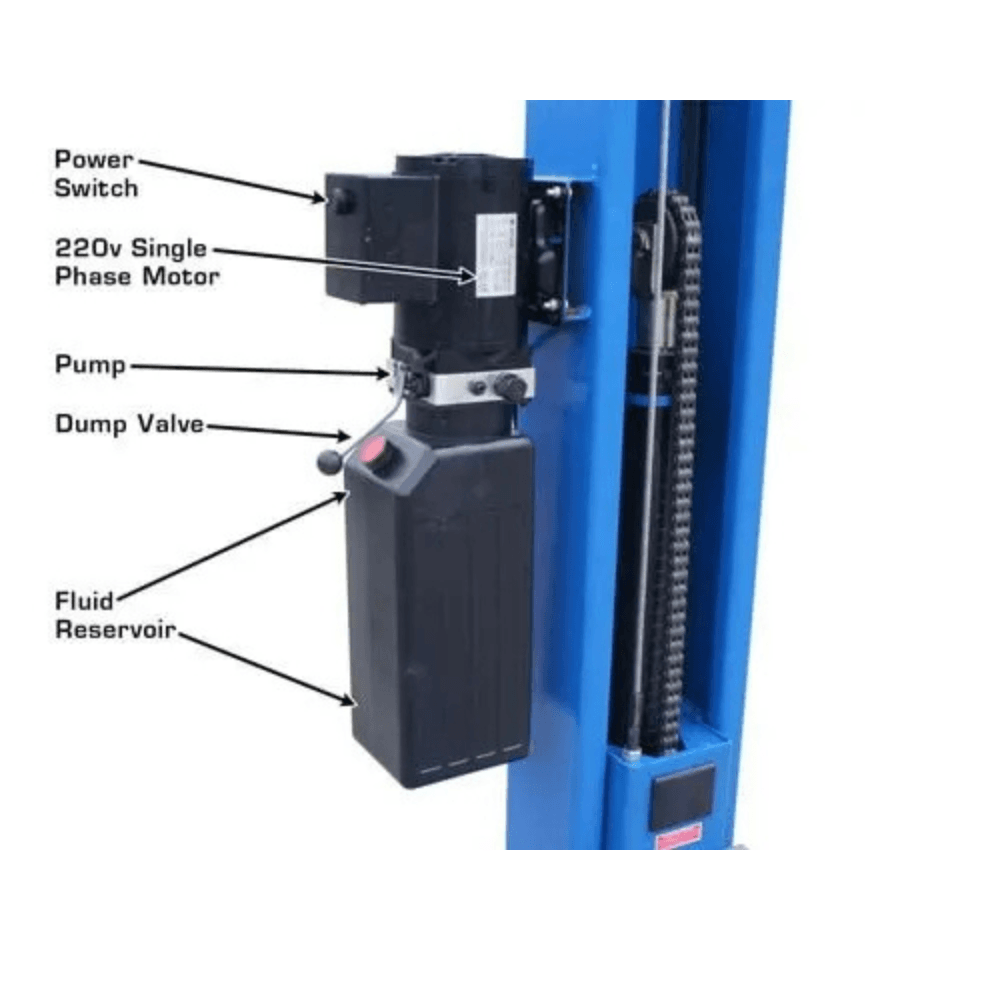

| Motor / Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32 or AW46 (Not Included) |
| Shipping Weight | 1,300 lbs. |
| Adapter Heights | 4 Each: 2″, 3″, 6″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
| Category | Car Lift |
|---|---|
| SKU | 31854 |
| Condition | Brand new, in original packaging |
