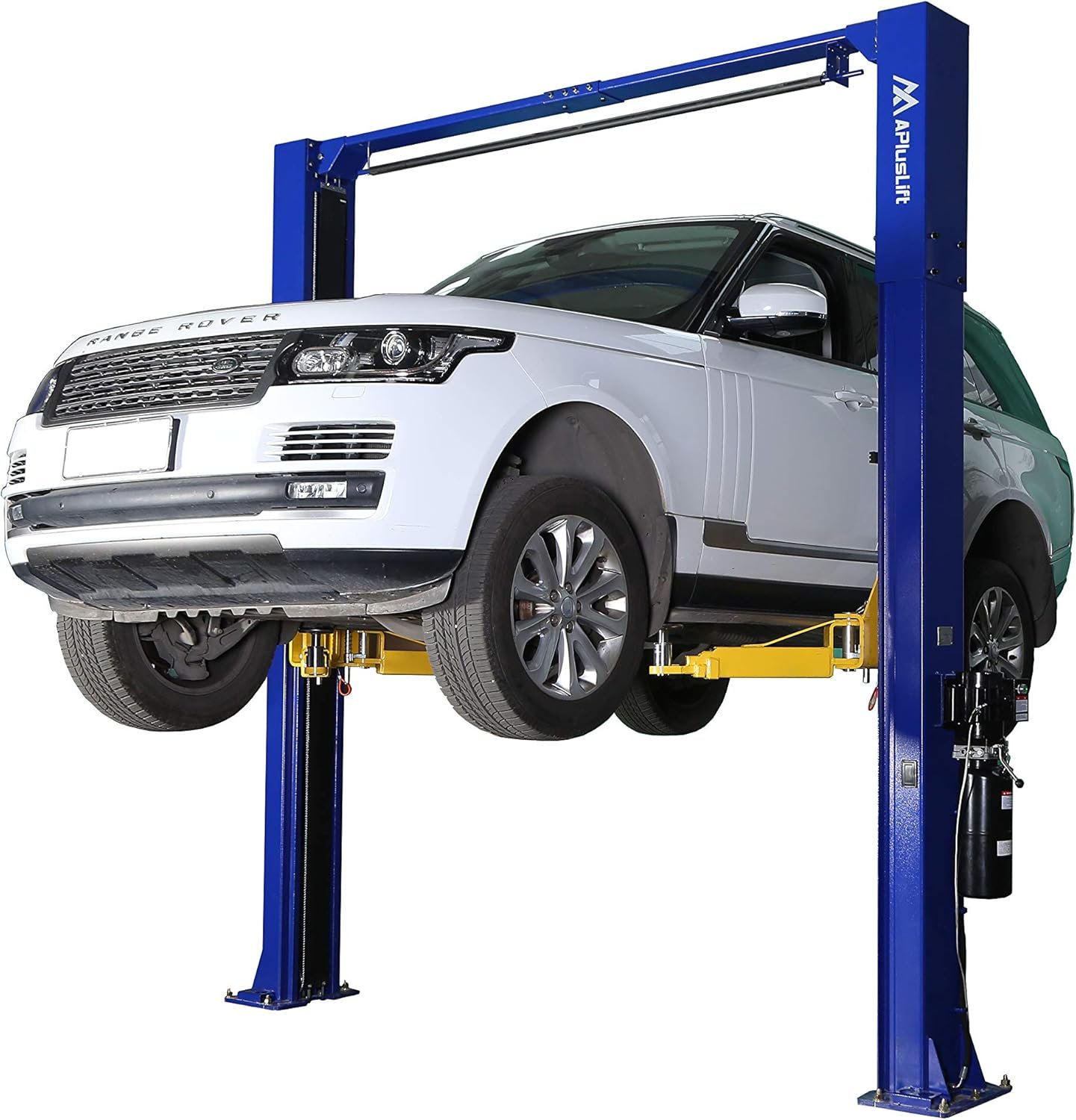

APlusLift HW-10KOH-A 10000LB Two Post Overhead Clear Floor Car Lift/Industry Leading 3 Year Warranty

SKU: 54978Condition: NewFree tracked shipping

$1,329.89

  • Industry-leading 3-YEAR WARRANTY
  • Industry-leading 3-YEAR WARRANTY
  • Combo (symmetrical and asymmetrical) Arm Assembly with Adjustable Screw Pads!
  • CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic…
  • Easy 90-day returnsSimple, no-stress process
  • Manufacturer warrantyOn every product
  • Secure paymentSSL encrypted checkout
  • Expert supportHelp choosing the right model

Guaranteed safe & secure checkout

VISAAMEXDISCOVERPayPalPayGPay
In detail

Product overview

Key features

  • Industry-leading 3-YEAR WARRANTY Combo (symmetrical and asymmetrical) Arm Assembly with Adjustable Screw Pads! CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity One Set of 4" Tall Truck Adapters Included; 6'9" Lift Height Maximum with Truck Adapters All Robot Welded Structure with Durable Powder Coated Finish
  • Industry-leading 3-YEAR WARRANTY

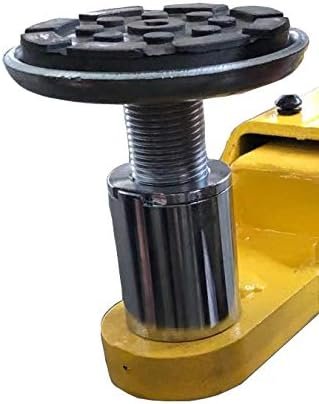

  • Combo (symmetrical and asymmetrical) Arm Assembly with Adjustable Screw Pads!
  • CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
  • One Set of 4" Tall Truck Adapters Included; 6'9" Lift Height Maximum with Truck Adapters

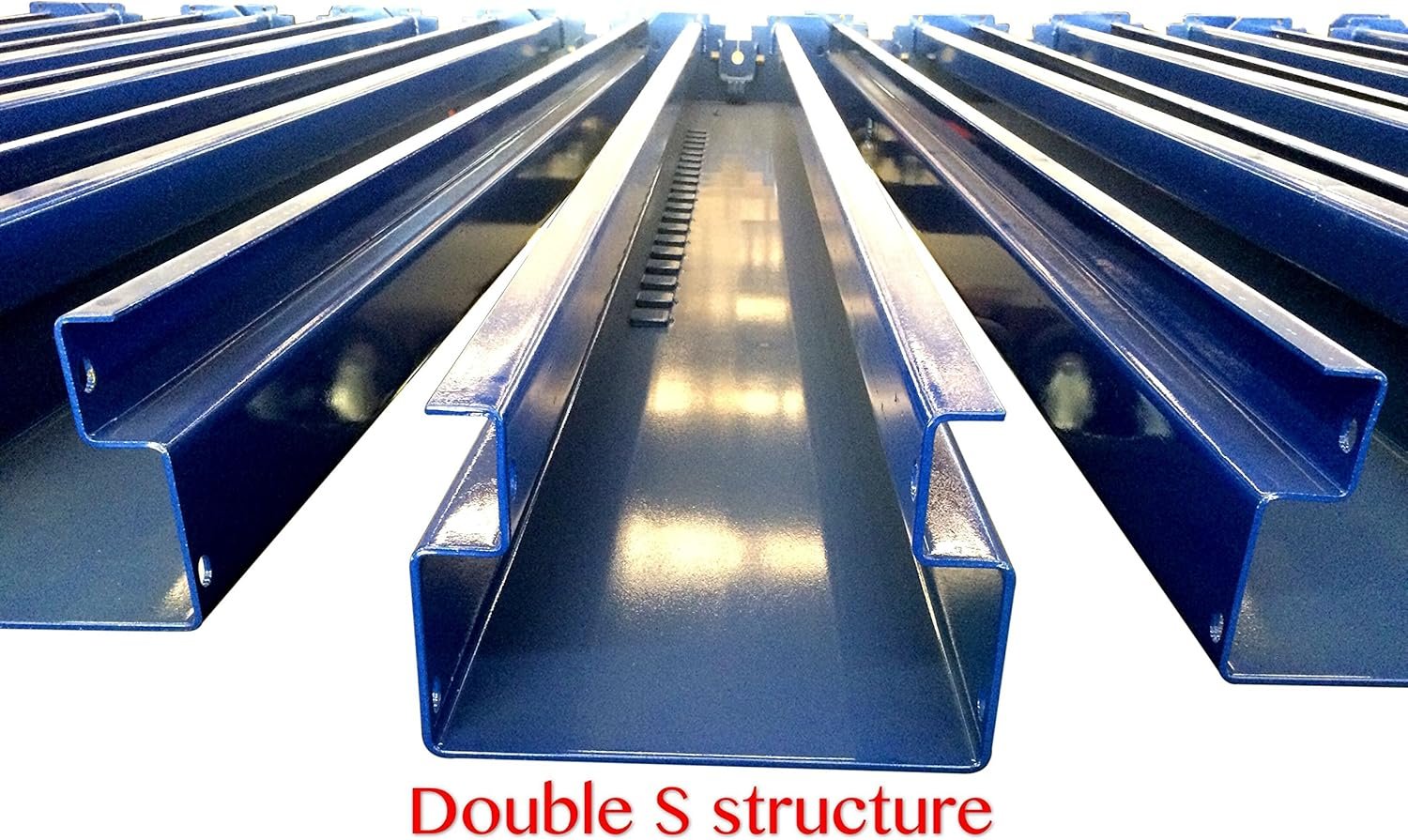

  • All Robot Welded Structure with Durable Powder Coated Finish
  • CE Certified Lift Structure and Hydraulic System
  • Third-party tested with a dynamic load capacity of 115%
  • Third-party tested with a static load capacity of 150%
  • Durable hydraulic system
  • Easy to operate and maintain
  • Double-point safety lock release
  • Double seal rings protecting PU material
  • Carriage material Q355 (ASTM A572), stronger than normal Q235 steel
  • Lifting operation by pressing the "UP" button on the motor
  • Manual lowering operation by pressing the lever

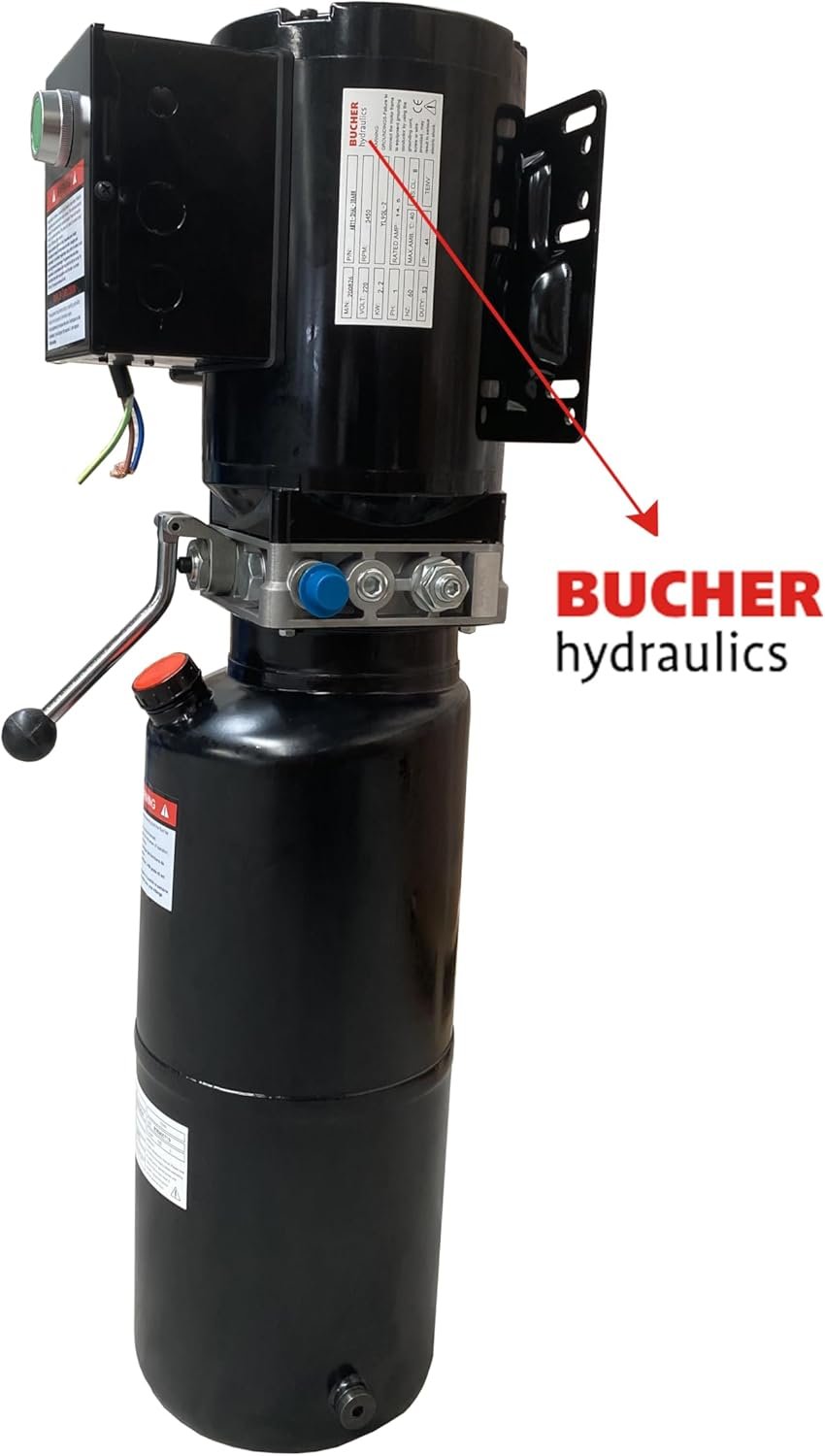

  • Relief valve built-in power pump to prevent overloading
  • Automatic arm lock restraints
  • Door guard protection rubber
  • Up-limit switch to protect cylinders working stroke used in safe length scope
  • Heavy duty 3/8" diameter cable and 5" pulley that reduce high stress on synchronization process and increase cable life
  • Ultra-high molecular self-lubricating nylon slider that ensures carriage smooth moving up and down
Tech sheet

Specifications

ModelHW-10KOH-A (This Model) · AP-10SR (for Comparison)
ManualHW-10 KOH- A manual · AP-10SR Manual
StyleOverhead · Overhead
Lock ReleaseDouble Point Release · Single Point Release
Warranty3 Years (36 months) · 3 Years (36 months)
Lifting Capacity10,000 LB · 10,000 LB
Overall Height143 3/16" · 143 3/16"
Overall Width134 5/16" · 134 5/16"
Maximum Lift height with Truck Adapters81" · 81"
Maximum Lift height without Truck Adapters75" · 75"
Maximum lift height from bottom of the arm to the ground71" · 71"
Minimum Height of Adjustable Pads from Ground4" · 4"
Drive Through Width (Carriage to Carriage)100" · 100"
Column to Column Width109" · 109"
Column Cross Section11"L x 7"W · 11"L x 7"W
Driving ModeDual hydraulic cylinders, chain drive · Dual hydraulic cylinders, chain drive
Motor220V Single Phase 3HP 10A (recommend a 30A breaker) · 220V Single Phase 3HP 10A (recommend a 30A breaker)
Hydraulic Oil3-5 gallons AW32/AW46 (not included) · 3-5 gallons AW32/AW46 (not included)
Time to full rise50 seconds · 50 seconds
Shipping Weight1470 LB · 1400 LB and 120 LB

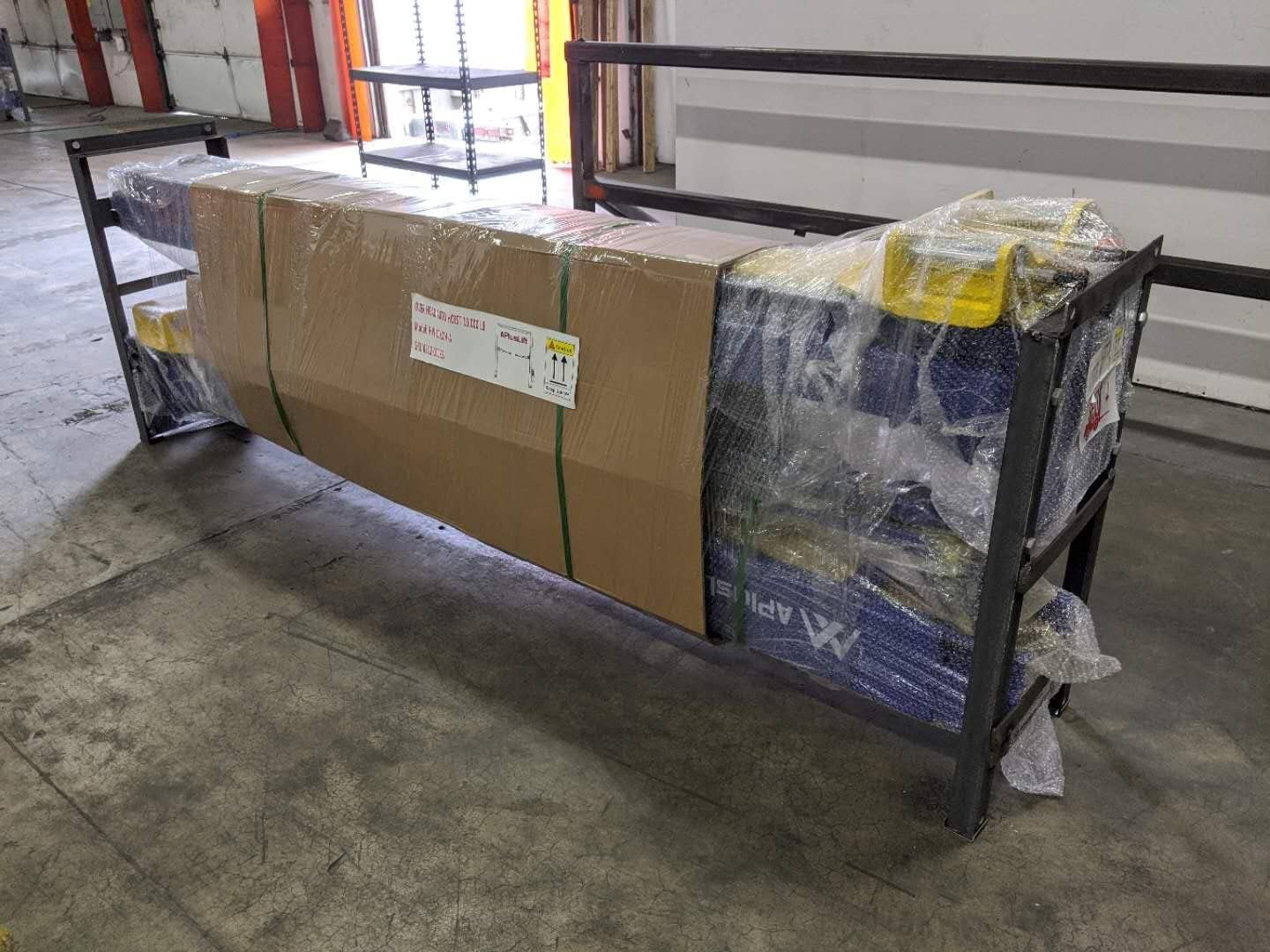

Shipping package size113"L x 22"W x 40" H · 113"L x 22"W x 40"H (Car Lift) 38"L x 17"W x 14" H (2 ft Height Extension Crate)
Concrete Requirement6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LB and below)
Parts Included4 pieces of adjustable screw pads 4 pieces of 4" tall truck adapters (height extensions) 10 anchor bolts 10 shims 2 tool trays 2 toe guards

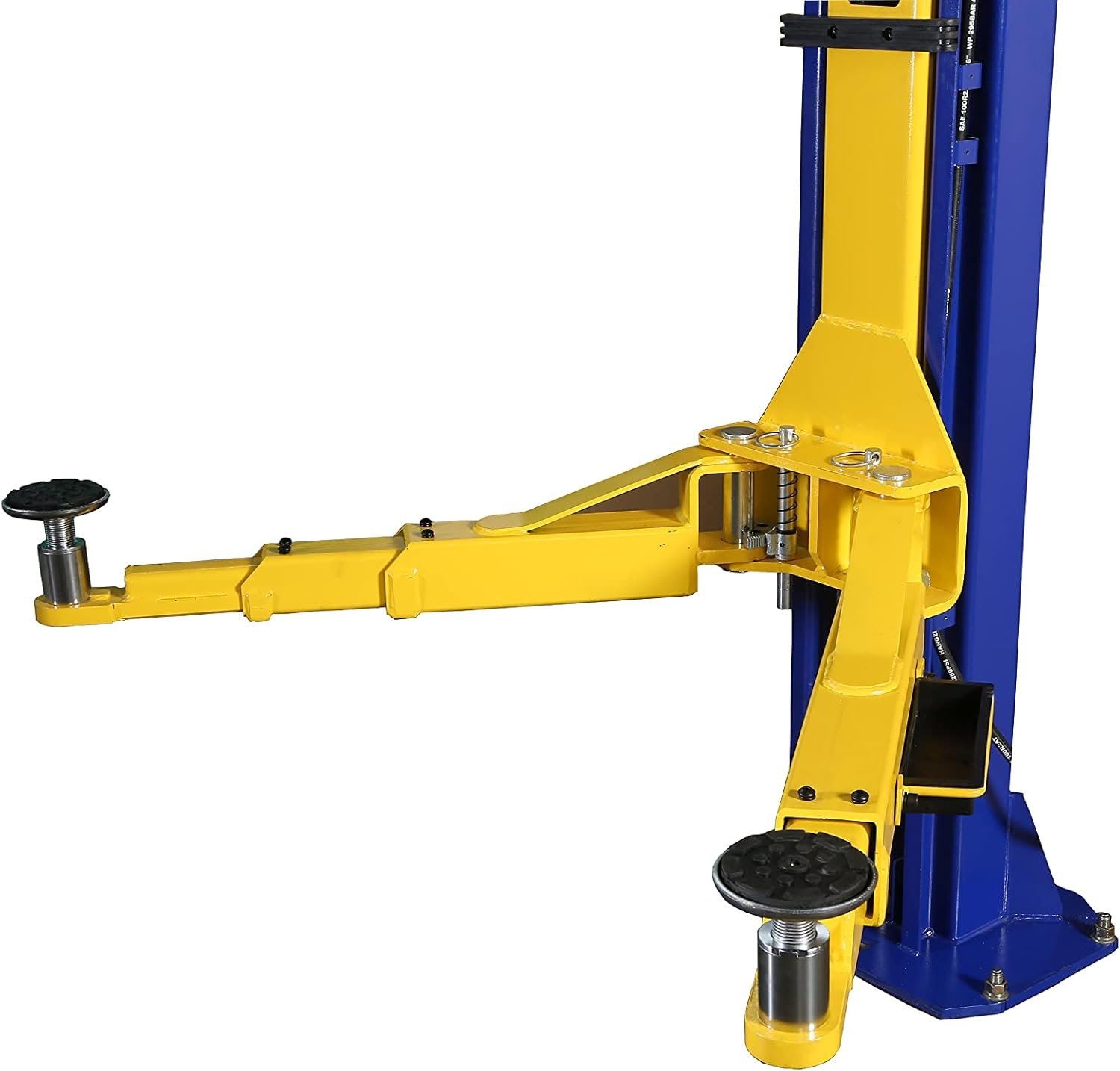

Arm AssemblyCombo (symmetrical and asymmetrical) Arm Assembly

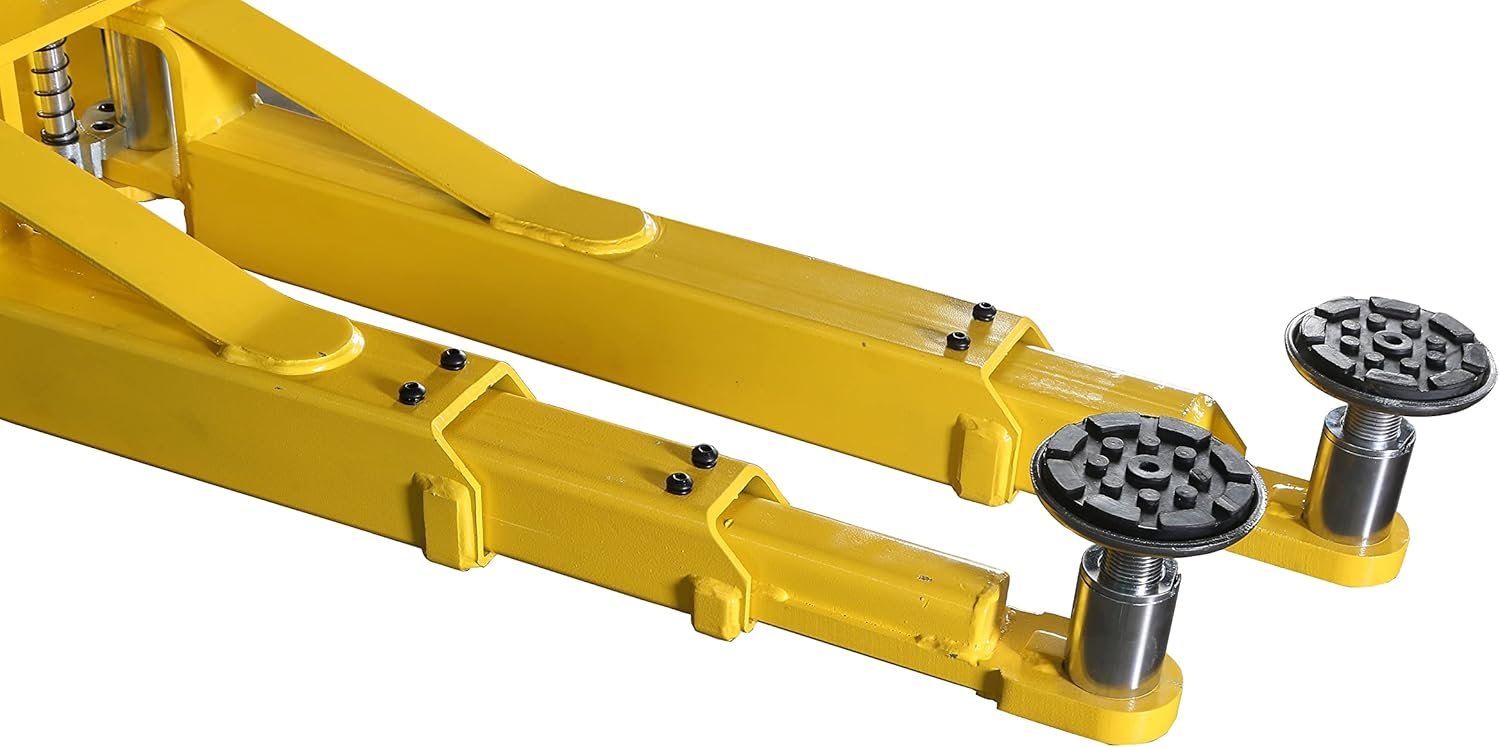

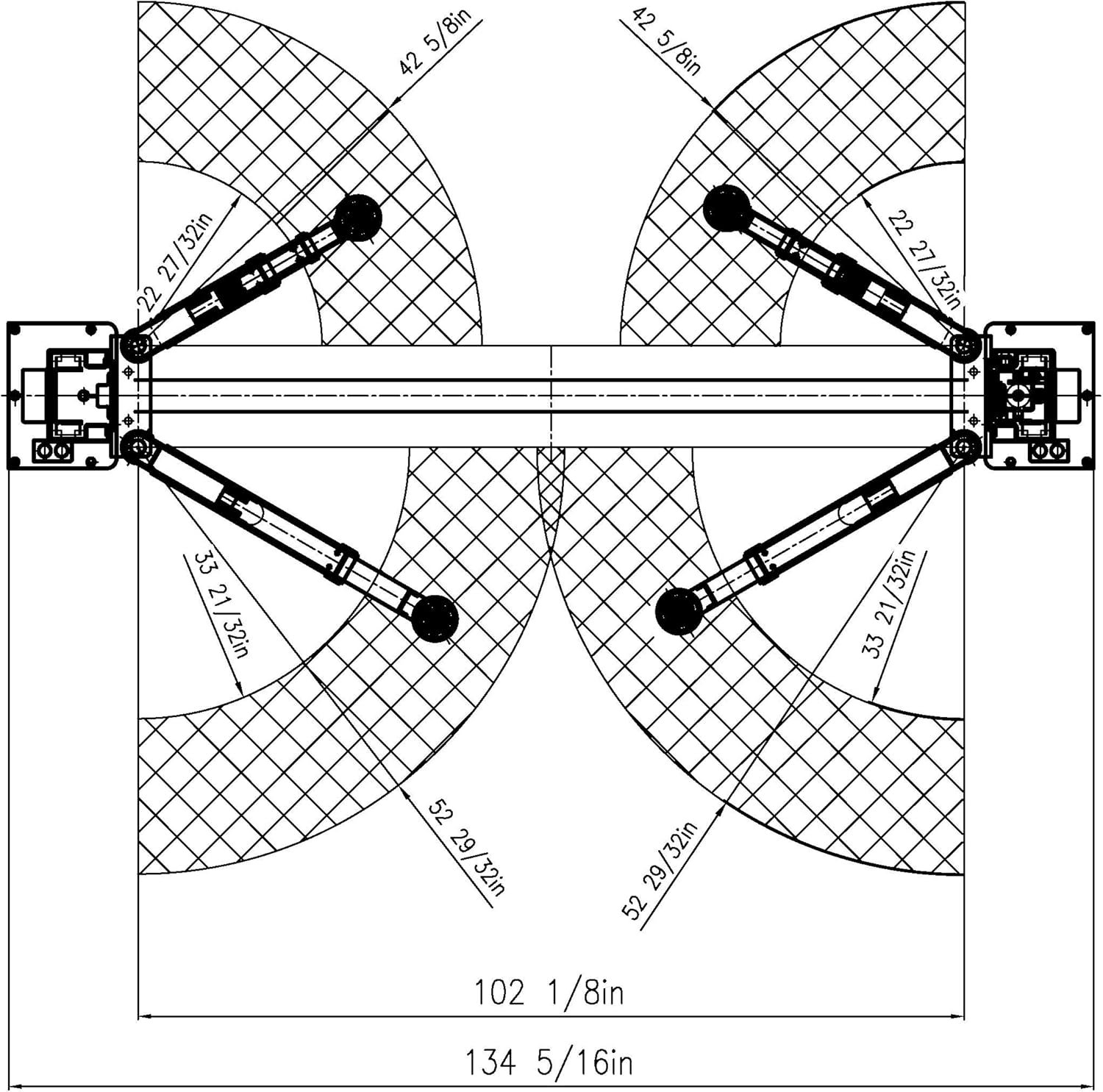

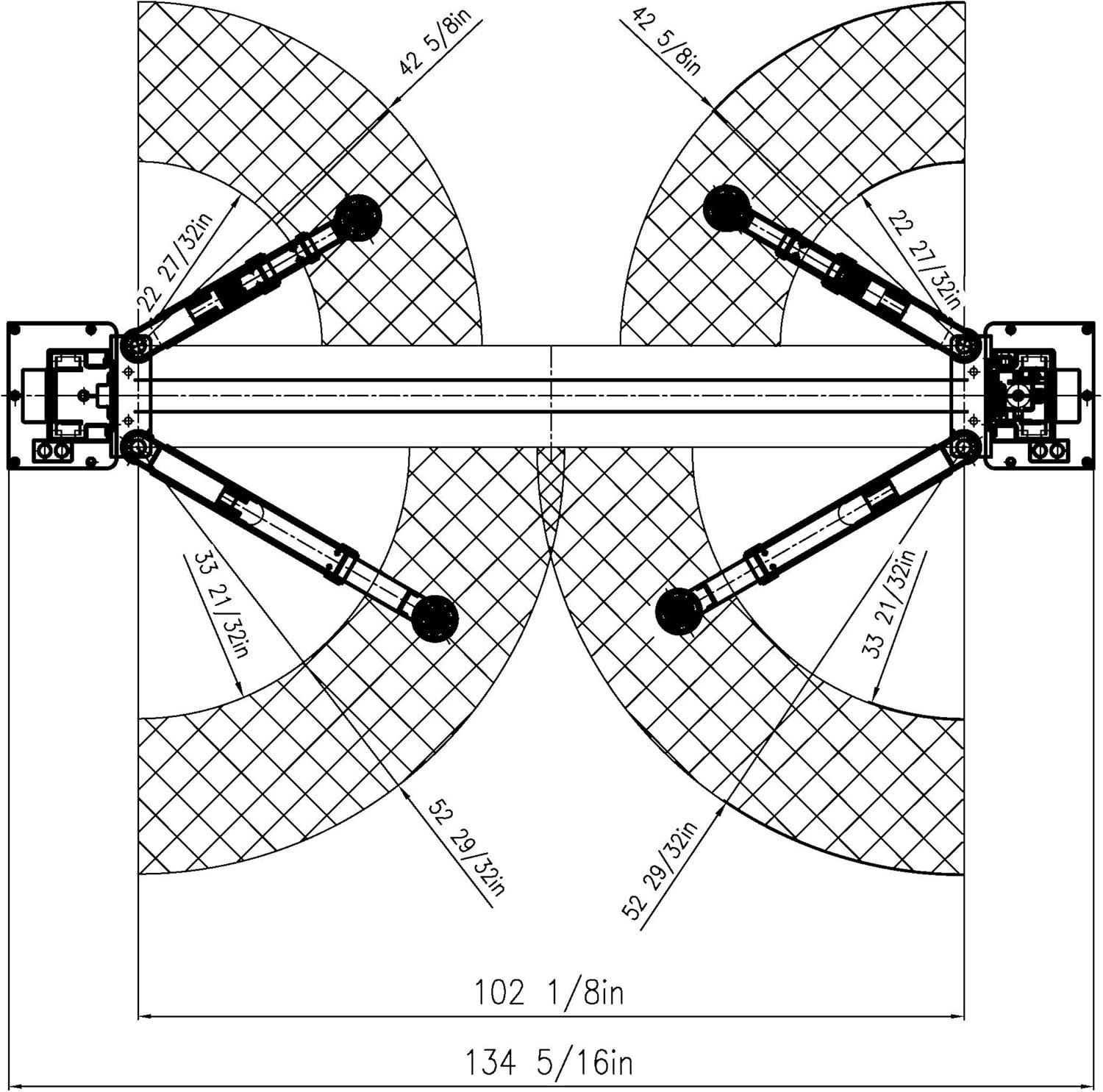

Front ArmsStraight Front 3 Stage reach from 22 7/8" to 42 5/8"
Back ArmsStraight Rear 2 Stage reach from 33 5/8" to 52 7/8"
Column Steel Thickness13/64"
Carriage Steel Thickness15/64"
Carriage Yoke Thickness9/16"
Arm Steel Thickness15/64"
Base Plate Steel Thickness5/8"
CategoryCar Lift
SKU54978
ConditionBrand new, in original packaging
